High speed extrusion production line for PVC water supply and drainage pipes
All rights reserved：Established in 1982, TongDa Plastic Machinery Co., Ltd. Update time：2024-04-11 21:23:00
Main Technical Paramete：
Model | Pipe Dia. (mm) | Output (Kg/h) | MAX.Line Speed (m/min) | Motor Power (kw) | Line Lengt (m) |
75(B) | 50-110 | 800 | 25 | 75 | 28 |
90(C) | 110-200 | 1250 | 15 | 90 | 28 |
110(C) | 110-400 | 1650 | 15 | 110 | 30 |
雙驅(qū) 75(B) | 110-315 | 1400 | 15 | 75x2 | 28 |
65(A) | 50-160 | 450-500 | 15 | 55 | 25 |
80(A) | 200-630 | 700-800 | 8 | 90 | 28 |

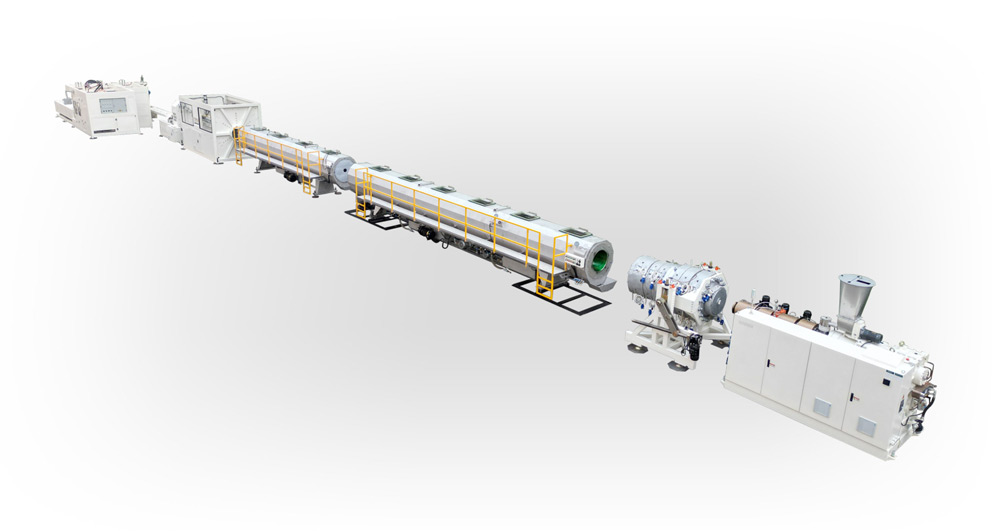

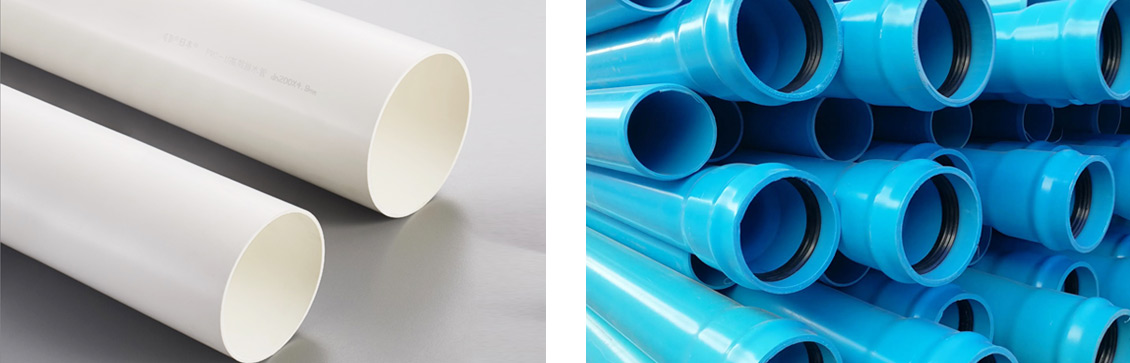

PVC pipe production line is mainly used to produce PVC pipes with all kinds of Diameter & thickness that are used for water supply and drainage as well as cable laying. This machine is made up of conical twin screw extruder, vacuum tank, HAUL-OFF machine, stacker etc.. The extruder and HAUL-OFF machine are controlled by imported AC variable frequency device. The vacuum pump and the motor of the HAUL-OFF machine are both of high quality. The ways of HAUL-OFF can be divided into 2-caterpillar, 3-caterpillar, 4-caterpillar, 6-caterpillar etc.. The way of cutting can be cutter lifting or planet cutting. The production line features reliable function and high efficiency. We can provide all kinds of dies according to customers’requirements.
